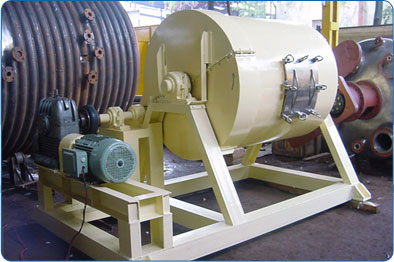

Ball mills are
basically used for Particle reduction with the
help of Grinding media. It consists of Cylindrical
Shell made out of Mild Steel Sheet with or without
lining of Steel or Rubber as per the application.
The End plates are so designed
to make sturdy with stiffners so as to withstand
the rotational load of the Loaded Ball Mill.
The Ball Mill is driven by pinion
gear which drives the Ring Gear which is fitted
on the Drum of the Ball mill. The Pinion gear
is coupled to the Gear Box which is coupled to
the Motor to ensure trouble free Performance.
Bolted Flange covers are provided
on the square opening of the Ball mill for loading
and discharge of the material.
Suresh Engineering Ball Mills
are fabricated from Mild Steel, Rubber lined and
Stainless Steel. |
