| Ribbon Blender are mostly
used by Detergent powder, Pharmaceutical Powder,
Talcum Powder manufacturing in Chemical, Plastic,
Paints, Food and allied industry. GMP model is provided
to Pharmaceutical & Food Industry.
We offer Ribbon Blender from 25 Ltrs to 5000
Ltrs in Material of contruction Mild Steel and
Stainless Steel and also in GMP grade |
 |

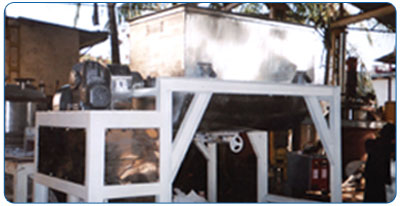

Ribbon
Blender as the name suggest consist of Semi-Cylinderical
shell inside which rotates Spiral Inner and outer
Ribbon type Blades along the central shaft. The
Ribbon Blades are so designed so that the Powder
or Semi wet material of different densities get
homogenously mixed. The Outer Blades pushes the
material towards the centre of the Blender and
Inner blades pushes the material on the two ends
of the Blender to get thorough and homogenous
mixing. A lid is provided on the top opening of
the Blender Material Discharge is done through
Sliding valve at the bottom of the blender. A
hopper or grilled opening is provided on the top
Lid if required. |
 |
The
drive is designed to give maintenance and trouble
free performance. The Blender is Mounted on MS
Channel Fabricated Structure. The Shaft is coupled
to the Reduction Gear Box with Flexible coupling.
The Reduction Gear Box directly coupled or driven
by Motor using V belt pulley. |
| |
| |
